GPI GPRO 20 GPM 115V Aviation Fuel Transfer Pump Package w/ Filter
$2,557.60
GPI GPRO 20 GPM 115V Aviation Fuel Transfer Pump Package w/ Filter
This 115V AC 20 GPM aviation fueling package is for use with personal or light duty aircraft. Use with gasoline, gasoline/ethanol blends at levels designated as «gasohol» (E10 maximum), diesel, kerosene and aviation gasoline (AVGAS 100LL) and kerosene grade (JET A). This package contains the 115V AC 20 GPM pump, pipe fitting, aviation hose, swivel, nozzle and filter. Nozzle comes with red full grip guard to identify use only with AvGas or black full grip guard for jet fuel application if desired.
User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel servicing of aircraft using liquid petroleum fuels. Pump motor is U.L. Listed to U.S. and Canadian standards.

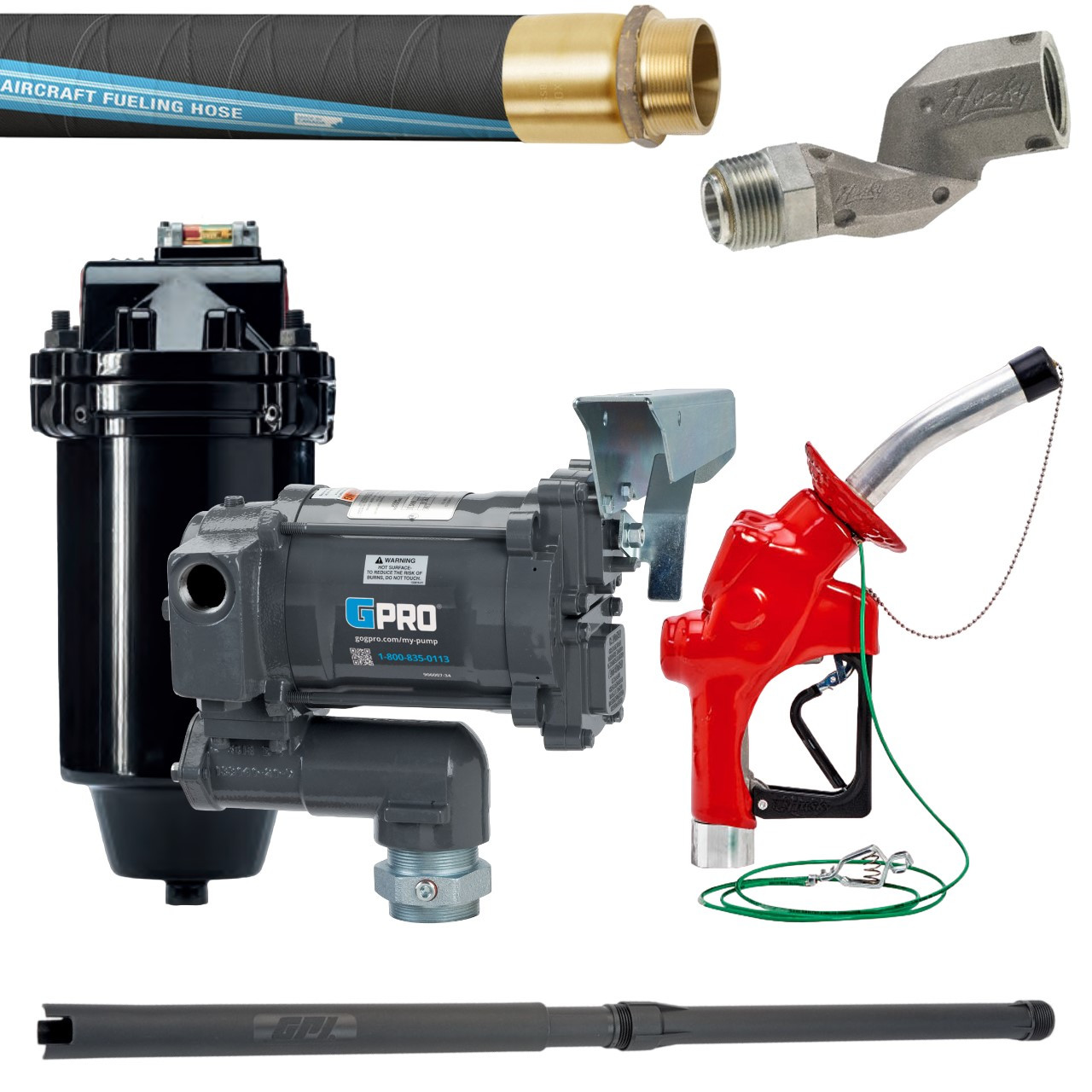

- GPI 115V AC 20 GPM Aviation Fuel Pump
- Facet Fuel Guard 1 Micron Filter
- Husky Hewitt Osprey Over Wing Aviation Fuel Nozzle
- Continental ContiTech Jet Ranger™ 1 in. x 20 ft. 300 PSI Aviation Fueling Hose
- GPI 1 in. x 15-40 in. Plastic Telescoping Suction Pipe
- Husky 1 in. Hose Swivel
Pump Specifications
- Pump Flowrate: Up to 20 GPM (76 LPM)
- Voltage: 115V AC
- Suction Lift/Dry Prime: 15 ft. (4.6 m) Maximum
- Discharge Lift: 10 ft. (3 m) Maximum
- Operating Temp: -20° to +125° F (-29° to +52° C)
- Bypass Pressure: 22 psi
- Bung: 2 in. NPT
- Inlet / Outlet: 1 in. NPT / 1 in. NPT
- Strainer Mesh Size: 315 Micron
- Warranty: 4-Year (See Owner’s Manual for Details)
- Common Applications: Commercial use with Stationary Storage Tanks, Construction Sites, Large Farm Equipment, Logging, Mining Operations, Oil Exploration, Fleet & Service Vehicles, Delivery Trucks, & Fuel Management Systems & More
Hose Specifications
- Series: Jet Ranger™
- ID: 1 in. (25.4 mm.)
- OD: 1.493 in. (37.9 mm.)
- Length: 2 - 125 ft. - Other sizes available - Please call 1-800-333-3331 for more information
- Ends: Brass Male NPT
- Ferrules: Brass
- Construction Tube: Black Nitrile Synthetic Rubber
- Cover: Black Wingprene® (ORS) Static Dissipating/Static Conductive Synthetic Rubber (Wrapped Finish)
- Reinforcement: Four Spiral-plied Synthetic Fabric and One Nylon Breaker
- Working Pressure: 300 PSI (2.07 MPa)
- Hose Design Ratio (Burst Pressure): 4:1
- Temperature Range: -35°F to 200°F (-37°C to 93°C)
- Weight: 0.54 lbs./ft. (0.805 kg./m.)
Nozzle Specifications
- Body Aluminum
- Seals Fluorocarbon
- Packing Double o-ring seal protected by fiber reinforced Teflon®
- Lever One piece contoured steel
- Inlet 1 in. / 25.4 mm NPT
