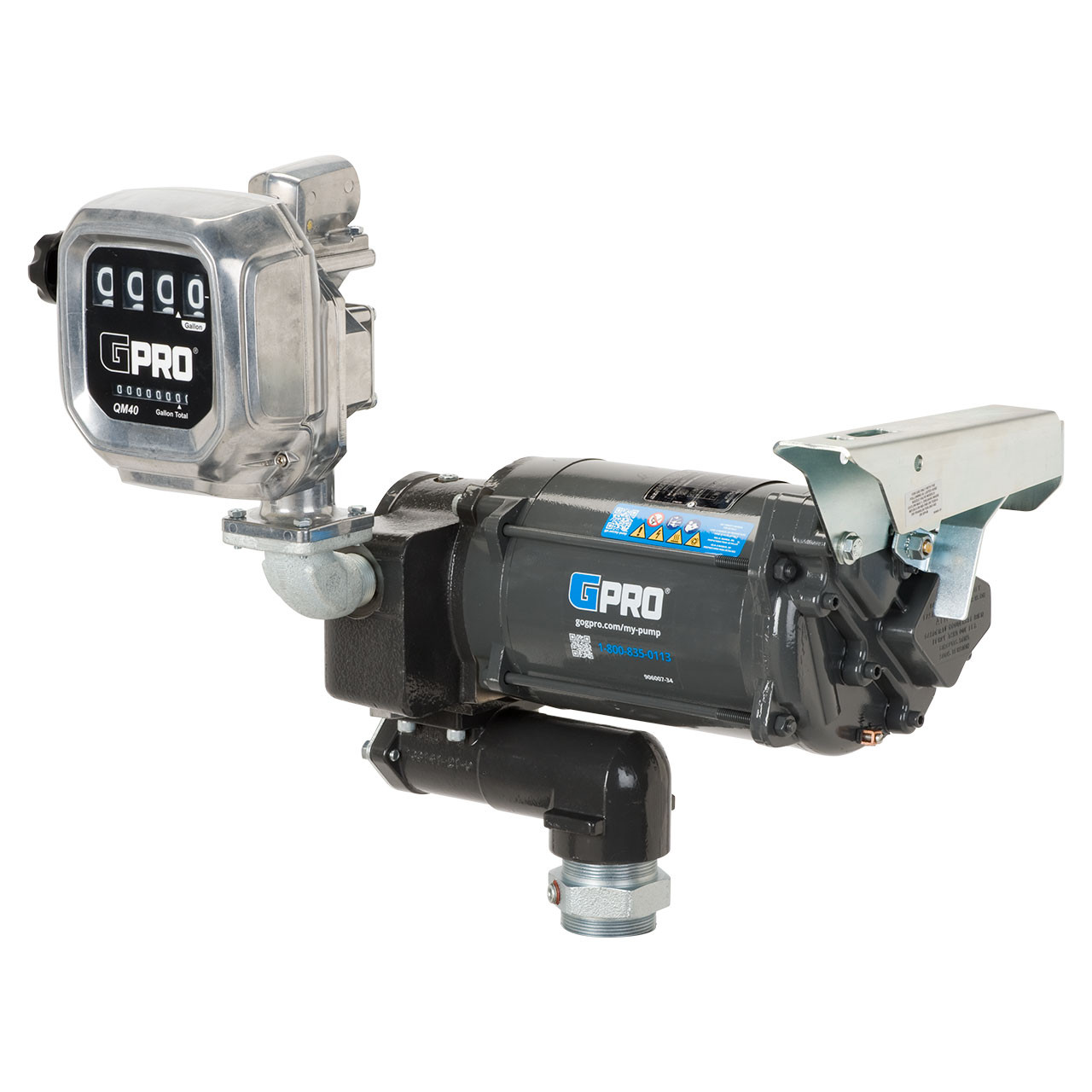

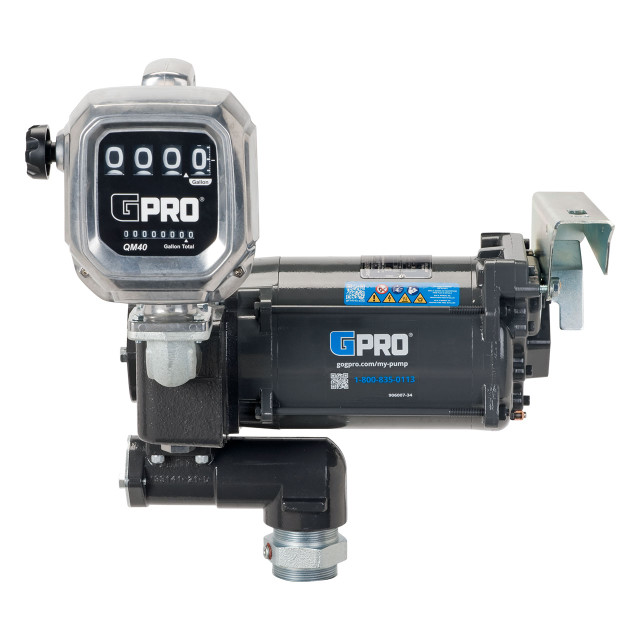

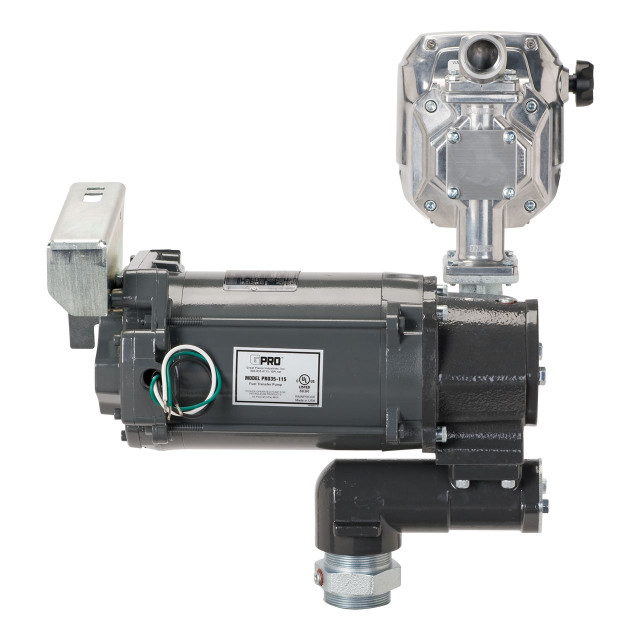

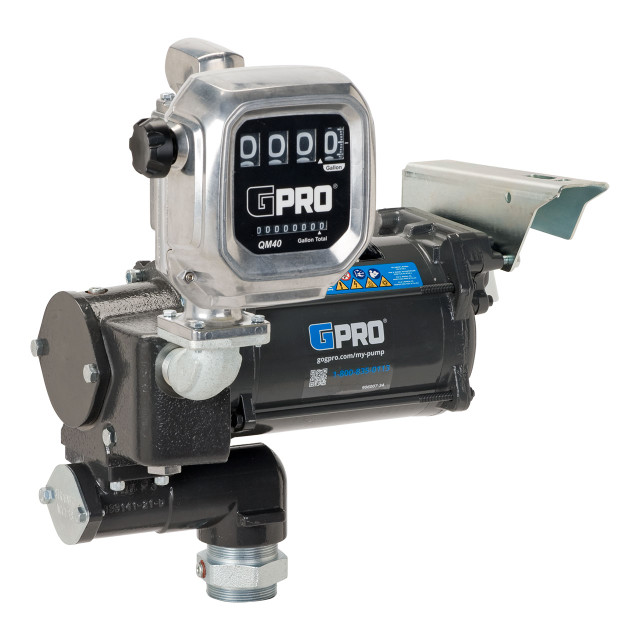

GPI GPRO PRO35-115 Series 115V AC Fuel Transfer Pump w/ QM Fuel Meter – 35 GPM
$1,656.99
SKU:Please choose an option below
Manufacturer:GPI
Voltage:115V AC
Size:1 in.
Flow-Rate:35 GPM
Peso:80.70 LBS

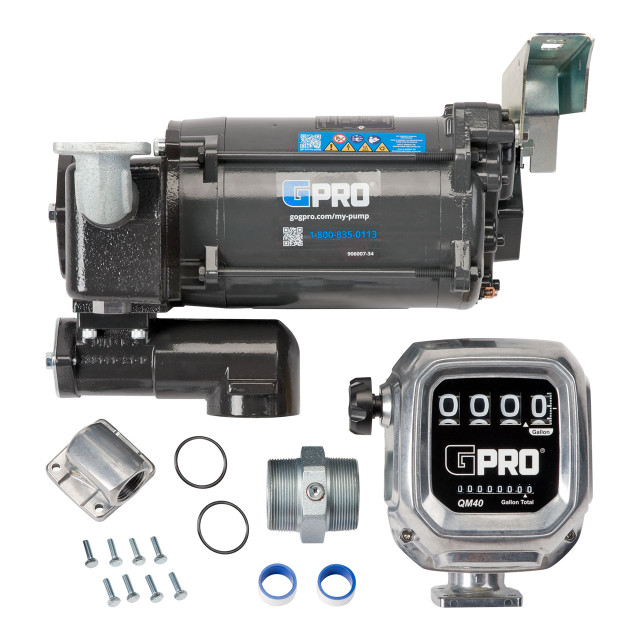

GPI GPRO professional grade fuel transfer pumps have an impressive 35 GPM flowrate for stationary tank applications. Ideal for fleet, agriculture or industrial applications. Engineered for high performance and longevity, the PRO35 gets the job done fast and efficiently. This package includes the PRO35-115 fuel transfer pump and QM fuel meter.
Compatible Fluids: Gasoline, Diesel, Aviation Fuel (100LL Avgas and Jet-A), and Kerosene
Note: During installation make sure all threaded fuel connections are wrapped with three to four turns of thread tape or a pipe thread sealant approved for use with petroleum fuels.
- Extended duty cycle tested to exceed industry standards
- Thermally protected motor
- Field replaceable switch and vanes
- Powder coating creates a durable and long-lasting finish
- Lockable nozzle holder
- Center-based inlet includes check valve and easy access to fuel strainer
GPRO PRO35-115 Volt AC Transfer Pump
- Inlet/Outlet: 1 in. NPT
- Mounting: 2 in. NPT
- Flow Rate: 35 GPM (132 LPM)
- Compatible Fluids: Gasoline, Diesel, Aviation Fuel (100LL Avgas and Jet-A), and Kerosene
- Duty Cycle: 30 min. ON, 30 min. OFF
- Operating Pressure: 25 PSI (1.72 bar) - High Pressure
- Operating Temperature: -20°F to 125°F (-29°C to 52°C)
- Pump Housing: Powder Coated Cast Iron
- Voltage: 115V AC, 60 Hz
- Type: Carbon Vane
- Current Draw: 9.8 Amp
- Motor: 1725 RPM, 3/4 HP, UL Listed to US and Canadian Standards
- Warranty: 4 Year
- Common Applications: Commercial use with Stationary Storage Tanks, Construction Sites, Large Farm Equipment, Logging, Mining Operations, Oil Exploration, Fleet & Service Vehicles, Delivery Trucks, & Fuel Management Systems & More
QM Series Fuel Meter
- Unit of Measure: Choice between Gallons or Liters
- Flow Range: 2 to 40 GPM (8 to 150 LPM)
- Inlet/Outlet: 1 in. FNPT
- Max Batch Total: 999
- Max Cumulative Total: 99,999,999
- Operating Temperature: -40° F to 125° F (--40° C to 52° C)
- Max Operating Pressure: 50 PSI (3.4 bar)
- Technology: Positive Displacement Oval Gear
- Accuracy:
- Diesel: ± 1/2%
- Unleaded: ± 1/4%
- Approvals: UL 25
