GPI GPRO 25 GPM 12V Aviation Fuel Transfer Pump Package
$1,658.16
GPI GPRO 25 GPM 12V Aviation Fuel Transfer Pump Package
This 12V DC 25 GPM aviation fueling package is for use with personal or light duty aircraft. Use with gasoline, gasoline/ethanol blends at levels designated as «gasohol» (E10 maximum), diesel, kerosene and aviation gasoline (AVGAS 100LL) and kerosene grade (JET A). This package contains the 12V DC 25 GPM pump, aviation hose, swivel, and aviation nozzle. Nozzle comes with red full grip guard to identify use only with AvGas or black full grip guard for jet fuel application if desired.
User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel servicing of aircraft using liquid petroleum fuels. Pump motor is U.L. Listed to U.S. and Canadian standards.

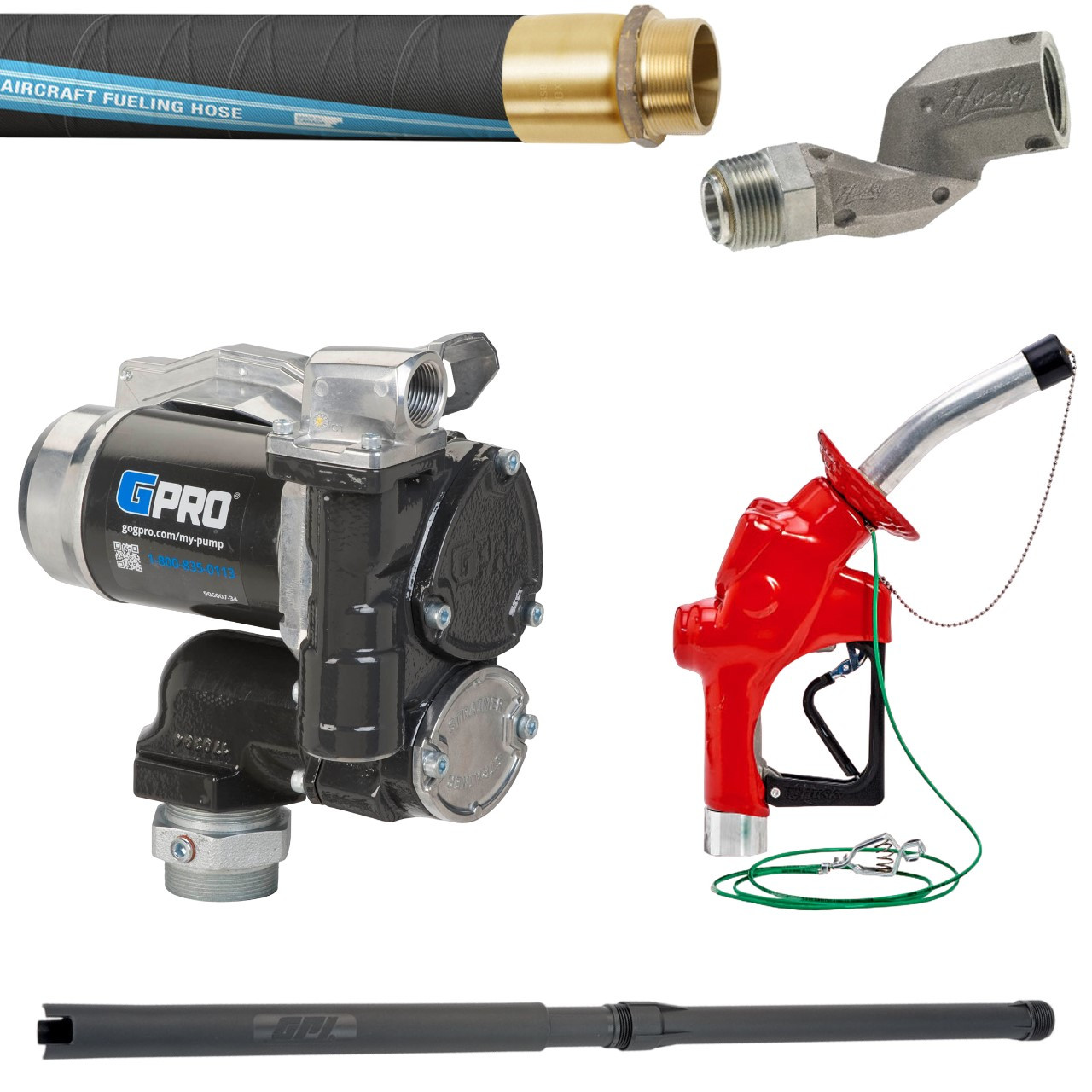

- GPI 12V DC 25 GPM Aviation Fuel Pump
- Husky Hewitt Osprey Over Wing Aviation Fuel Nozzle
- Continental ContiTech Jet Ranger™ 1 in. x 20 ft. 300 PSI Aviation Fueling Hose
- GPI 1 in. x 15-40 in. Plastic Telescoping Suction Pipe
- Husky 1 in. Hose Swivel
Pump Specifications
- Model: V25-012PX
- Type: Carbon Vane
- Housing Material: Cast Iron
- Inlet: 1 in. NPT
- Outlet: 1 in. NPT
- Tank Adapter: 2 in. NPT
- Pump Rate: 25 GPM (94 LPM)
- Input: 12V DC
- Current Draw: 35 Amps
- Motor: 1620 RPM, .41 hp
- Motor Approval: cULus Listed, Class I Div 1, IECEx/ATEX Zone 1
- Motor Protection: 40 Amp Circuit Breaker
- Duty Cycle: Intermittent, 30 minute ON, 30 minute OFF
- Suction Lift: Up to 15 ft. (4.5 m)
- Operating Temperature: -20 °F to 125 °F (-29 °C to 52 °C)
- Maximum Surface Temperature: 320 °F (160 °C)
- Operating Pressure: 20 PSI (1.37 bar)
- Cord: NA
- Fuse: 40 Amp
- Warranty: 4 Year
Hose Specifications
- Series: Jet Ranger™
- ID: 1 in. (25.4 mm.)
- OD: 1.493 in. (37.9 mm.)
- Length: 2 - 125 ft. - Other sizes available - Please call 1-800-333-3331 for more information
- Ends: Brass Male NPT
- Ferrules: Brass
- Construction Tube: Black Nitrile Synthetic Rubber
- Cover: Black Wingprene® (ORS) Static Dissipating/Static Conductive Synthetic Rubber (Wrapped Finish)
- Reinforcement: Four Spiral-plied Synthetic Fabric and One Nylon Breaker
- Working Pressure: 300 PSI (2.07 MPa)
- Hose Design Ratio (Burst Pressure): 4:1
- Temperature Range: -35°F to 200°F (-37°C to 93°C)
- Weight: 0.54 lbs./ft. (0.805 kg./m.)
Nozzle Specifications
- Body Aluminum
- Seals Fluorocarbon
- Packing Double o-ring seal protected by fiber reinforced Teflon®
- Lever One piece contoured steel
- Inlet 1 in. / 25.4 mm NPT
