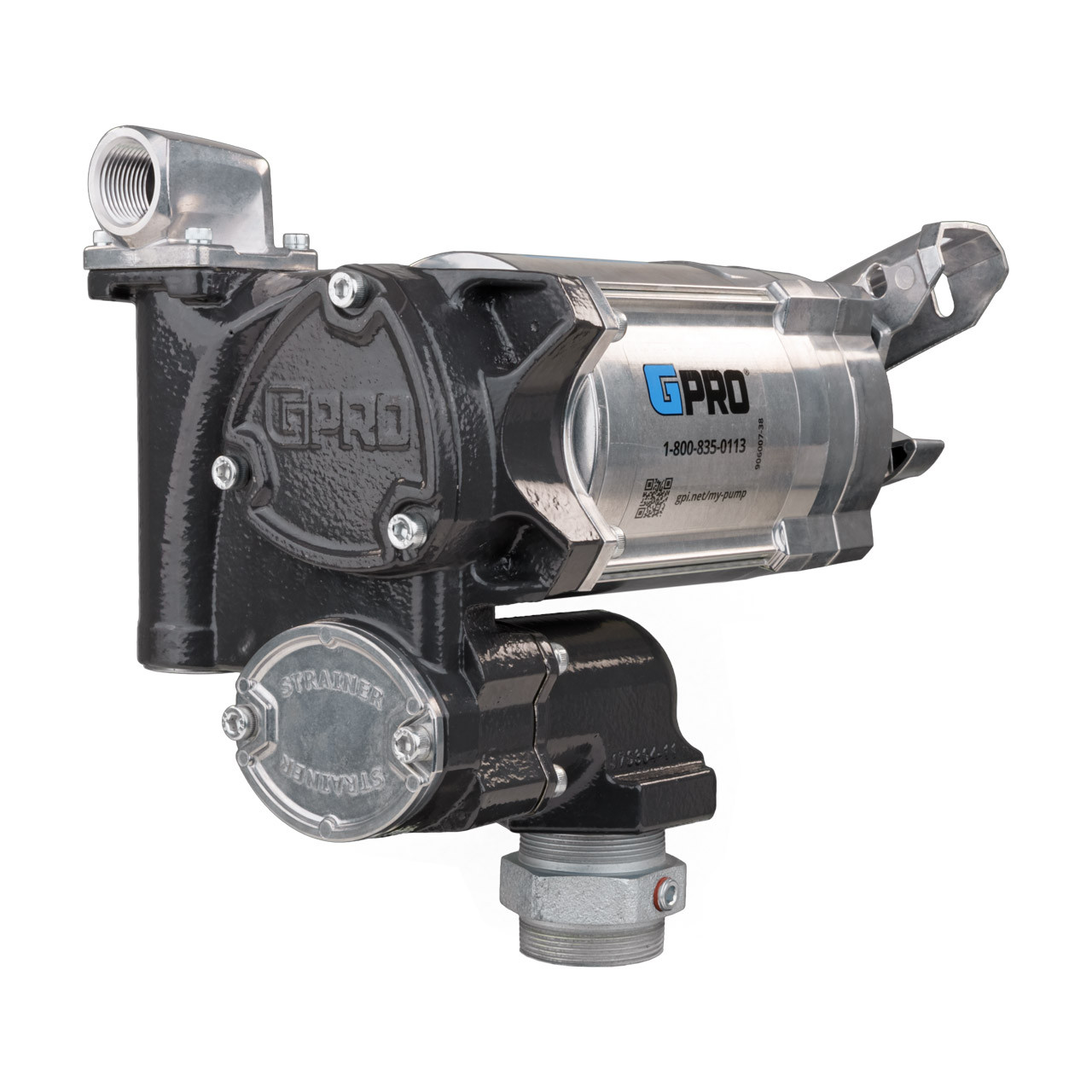

GPI GPRO V20-115PO-N08 Series 1 in. 115V AC 20 GPM Fuel Transfer Pump
$849.99
The GPRO V20-115 series is the next-generation modular vane pump for stationary applications fueling large equipment. The V20 is engineered to deliver consistent high-pressure performance from a tough, hard-working modular vane pump. 115V AC motor delivers up to 20 GPM (76 L/min). It’s fast and flexible; able to load up to 600 gallons of fuel uninterrupted, with a quick-fit modular system (4 bolts and an O-ring) that allows easy, leak-free attachment of filter, meter, or both. Extreme Temperature (XT) models available. Whether your business is agriculture, construction, or managing vehicle fleets, staying fueled up is critical, and it must be a quick and dependable process. This pump is compatible with Gasoline (up to E15), Diesel Fuel (up to B20), Kerosene, Jet A and Jet A-1 (AVgas 100LL).
Aviation Fueling Note: For ground-based refueling only. Do not use or mount in or on the aircraft. For use with aviation gasoline (Avgas 100LL), Jet A, and Jet A-1. User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel servicing of aircraft using liquid petroleum fuels. This product has no actual or implied compliance with this standard. Owners and operators are responsible for compliance to all applicable regulations.
- Quick-Fit modular design eliminates dangerous leaks - Four bolts and an O-ring quickly attach a filter, meter, or both
- High Pressure Performance ideal with hose reel
- 1-inch outlet for fueling large diesel equipment
- Lockable Nozzle Holder to deter fuel theft - New drip catch feature helps keep tanks and trucks clean
- Multidirectional 90 degree outlet to adapt easily for your application
- Easy Access to fuel strainer - simply remove two bolts and strainer cover
- Tank Adapter Included for easy installation, ready for vacuum breaker kit
- Part Number: 171000-01
- Model: V20-115PO-N08
- Description: Pump, Fuel 115V 20 GPM, Pump Only, 1 in.
- Input: 115V (AC) 60Hz, 230V (AC) 50/60Hz Dual Voltage Configurable
- Type: Carbon Vane
- Motor RPMs: 1690
- Motor HP: 0.50
- Flow-Rate: 20 GPM (76 L/min)
- Duty Cycle: 30 min on/30 min off
- Working Pressure: 25 PSI (1.72 bar)
- Minimum Dry Vac: 12 in. Hg
- Suction Lift (@ Sea Level 70°F): Up to 15 ft. (4.5 m.)
- Discharge Lift (@ Sea Level 70°F): 15 ft. (4.5 m.)
- Max Working Temperature: -20° F to 125° F (-29° C to 52° C)
- Wetted Materials: Acetal (Delrin), Aluminum, Carbon Graphite, Cast Iron, FKM Fluorine Kautschuk Material, PBT Polyester (VALOX), NBR (Nitrile Butadiene Rubber), Steel
- Inlet: 1 in. FNPT
- Outlet: 1 in. FNPT
- Mounting Type: Direct Mount, 2 in. MNPT
- Suction Pipe: Not included
- Power Cord: Not included
- Dispensing Hose: Not included
- Nozzle: Not included
- Housing: Cast Iron
- Warranty: 5-Year Pump Warranty
- Compatible Fluid: Gasoline up to E15, Diesel Fuel up to B20, Kerosene, (Avgas 100LL), Jet A and Jet A-1
- Approvals: cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada, cULus Power-Operated Pumps for Petroleum Products
