Pumps

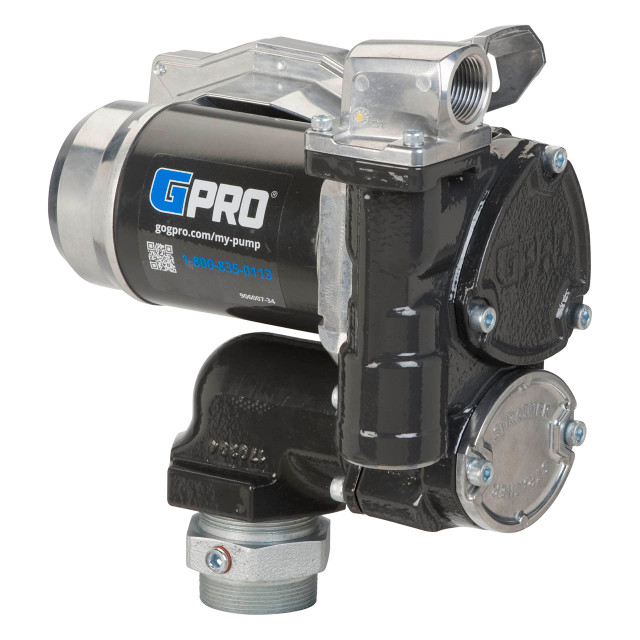

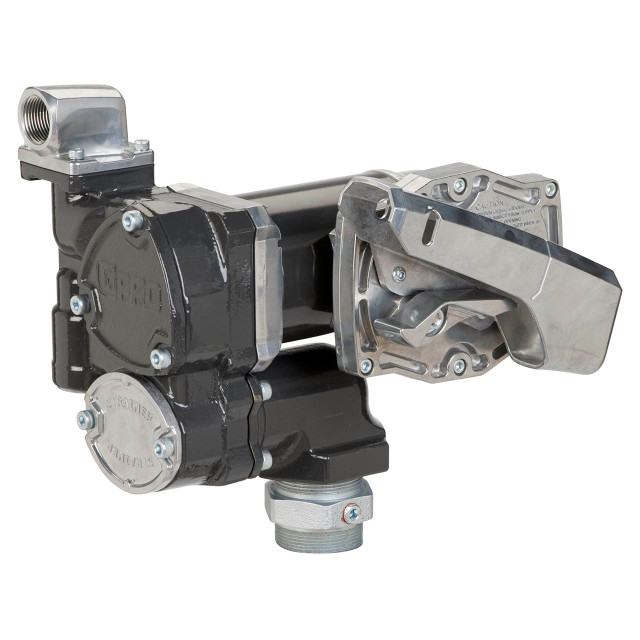

GPI V25-012PX 12V DC Transfer Pump – Pump Only – 25 GPM
$899.99
SKU:GPI17000001
Manufacturer:GPI
Product Type:Fuel Transfer Pump
Voltage:12V DC
Size:1 in.
Flow-Rate:25 GPM
Peso:45.00 LBS
GPI V25 12V DC Vane Pumps have a flow rate of 25 GPM and are constructed with materials that prevent rust and survive all weather conditions. The V25 features a Quick-Fit modular design that eliminates dangerous leaks and allows for the easy attachment of a filter, meter, or both. Made in the USA.
Fluid Compatibility: Gasoline up to E15, Diesel up to B20, Kerosene. Pump only version also supports the use of Aviation Gasoline (AVGAS100LL), and Kerosene Grade (JET A).
- Quick-Fit modular design eliminate dangerous leaks - Four bolts and an o-ring quickly attach a filter, meter, or both
- High Pressure Performance ideal with hose reel
- Equipped with Safe Stop Power Down - 30 minute auto power down with easy reset, Pump 750 gallons uninterrupted, prevents misuse
- Lockable Nozzle Holder to deter fuel theft - New drip catch feature helps keep tanks and trucks clean
- Multidirectional 90 degree outlet to adapt easily for your application
- Internal Check Valve with Perfect Prime to keep pump head primped and ready to work, reduces wear avoiding dry prime conditions
- Easy Access to fuel strainer - simply remove two bolts and strainer cover
- Tank Adapter Included for easy installation, ready for anti-siphon vent kit
- Model: V25-012PX
- Type: Carbon Vane
- Housing Material: Cast Iron
- Inlet: 1 in. NPT
- Outlet: 1 in. NPT
- Tank Adapter: 2 in. NPT
- Pump Rate: 25 GPM (94 LPM)
- Input: 12V DC
- Current Draw: 35 Amps
- Motor: 1620 RPM, .41 hp
- Motor Approval: cULus Listed, Class I Div 1, IECEx/ATEX Zone 1
- Motor Protection: 40 Amp Circuit Breaker
- Duty Cycle: Intermittent, 30 minute ON, 30 minute OFF
- Suction Lift: Up to 15 ft. (4.5 m)
- Operating Temperature: -20 °F to 125 °F (-29 °C to 52 °C)
- Maximum Surface Temperature: 320 °F (160 °C)
- Operating Pressure: 20 PSI (1.37 bar)
- Cord: NA
- Fuse: 40 Amp
- Warranty: 4 Year

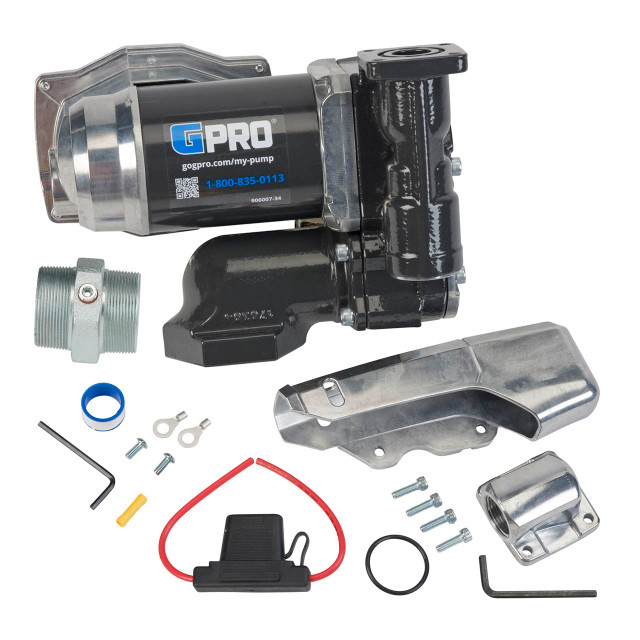

- V25-12PX 12V DC 25 GPM Fuel Transfer Pump
- Modular fitting with hardware
- Tank adapter
- Fuse assembly
- Owner's manual
