Nozzles

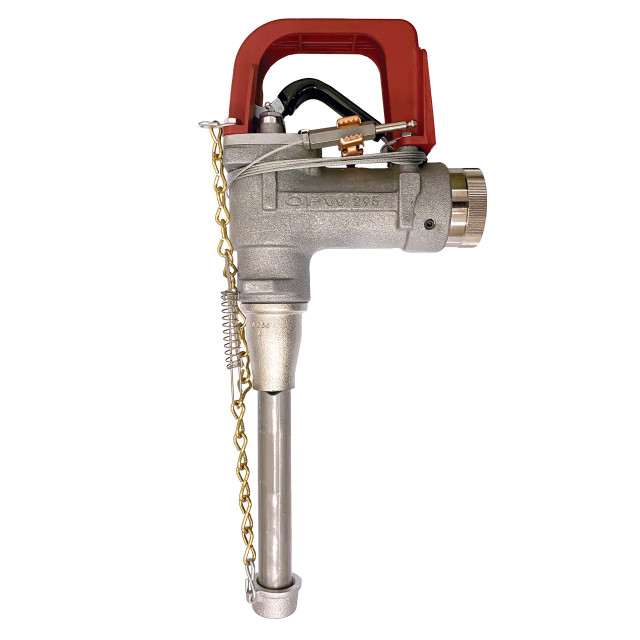

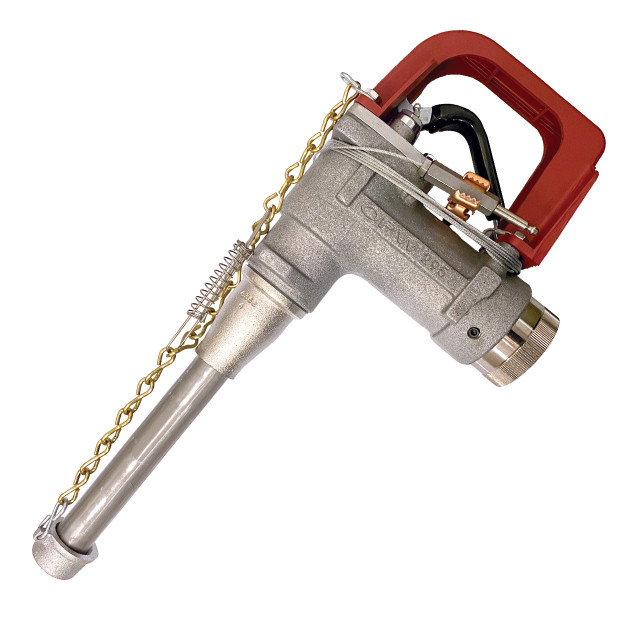

OPW 295SA AVGAS Manual Overwing Aircraft Fueling Nozzles
$1,093.33
SKU: OPW295SA0135
Manufacturer: OPW
Body: Cast Aluminum
Main Stem: Stainless Steel
Stem Seal: Nitrile O-ring
Disc: FKM
Spout: Aluminum
Peso: 5.00 LBS
OPW 295SA AVGAS Overwing Aircraft Fueling Nozzles
Fueling your aircraft is made easy and efficient with the OPW 295SA AVGAS Overwing Aircraft Fueling Nozzles. Made from lightweight cast aluminum, it’s easy to maneuver, enhancing your refueling process. With a unique right-angle design, it offers a larger lever area for better grip and control. The nozzle is designed to work with maximum pressure up to 110 psi, ensuring high performance and safety.
- Aluminum Body: lighter weight, easier to maneuver.
- Manual Shutoff.
- Dual Poppets: easy-to-open nozzle against high inlet pressures.
- Color-Coded Composite Lever Guards: helps distinguish between AVGAS and Jet A. Easily replaced in lever guard kit.
- Right Angle Design: provides larger lever area for better grip and easier control.
- Vinyl-Coated Lever: insulates fingers against cold.
- 100 Mesh Strainer: prevents foreign matter from entering fuel tank; easy to remove and clean.
- Dust Cap: keeps spout free from dirt and stops fuel drippage when connected.
- Adjustable Dash Pot: permits adjusting the main poppet closure rate over a wide range of flows to overcome line shock with minimum afterflow.
- Easily replaced spout: the spout is easily threaded into the body. Replacement spouts are readily available from OPW.
- Built-In Swivel: eliminates twisting and kinking of the hose. This swivel is electroless nickel-plated and has full-bearing surfaces.
- Ground Wire Assembly: included on all aviation nozzles.
- Body: Cast aluminum
- Main Stem: Stainless steel
- Stem Seal: Nitrile O-ring
- Disc: Viton®
- Spout: Aluminum
Sizes: Inlet x Spout OD
- 1 in. x 1 in.
- 1 1/4 in. x 1 in.
- 1 1/2 in. x 1 in.
- 1 1/2 in. x 1 5/8 in.
