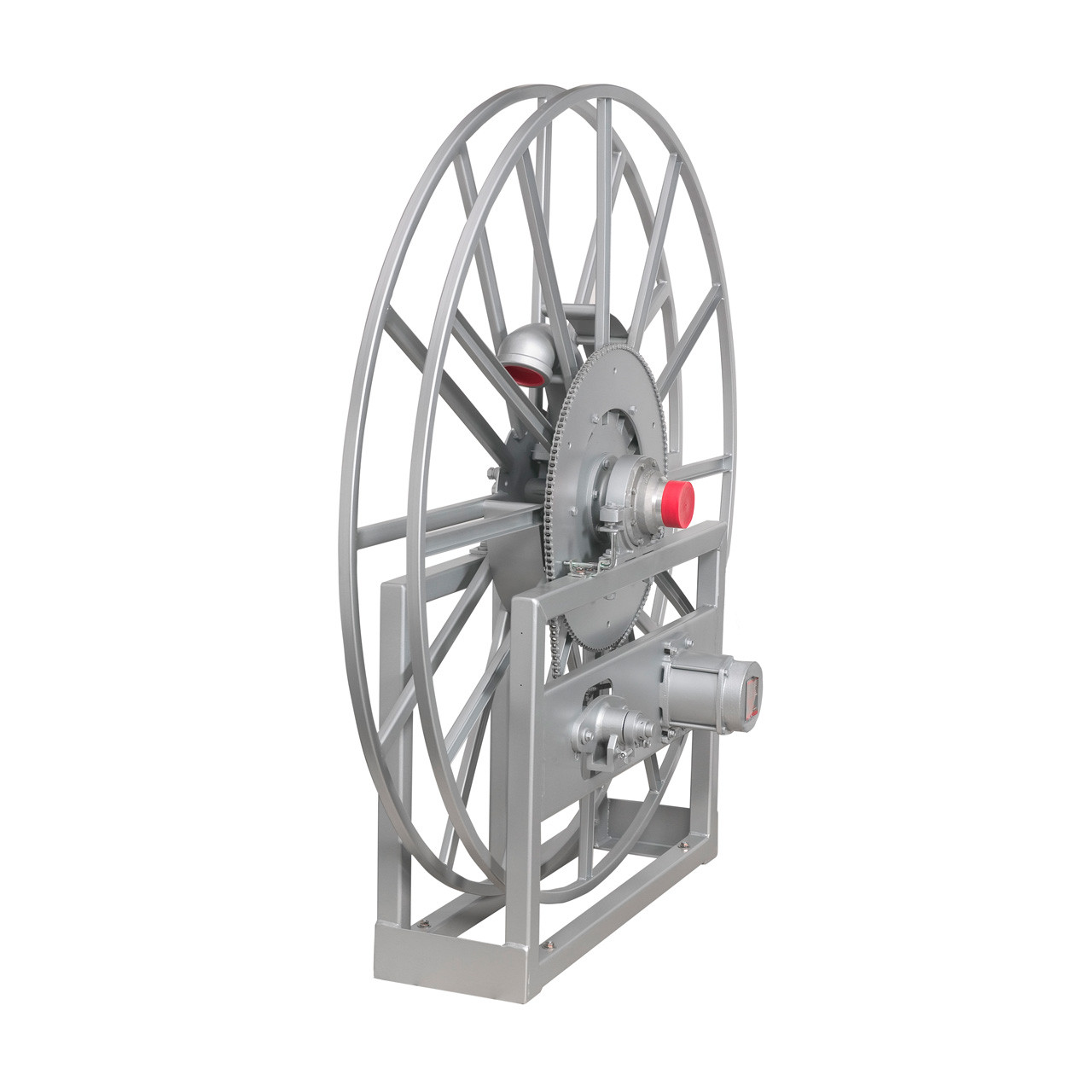

Hannay Reels V-5000 Series Aviation 12 VDC Power Rewind Reel, Reel Only, 2 1/2 in. x 50 ft., V-EPJ5319-62-64-30

$5,109.86

SKU: HRVEPJ5319626430RT12V
Manufacturer: Hannay Reels
Size: 2 1/2 in.
Capacity: 50 ft.
Hose Included: No
Rewind Type: Motorized Rewind
Peso: 475.00 LBS
SKU: HRVEPJ5319626430RT12V Categoría: Marca:

Hannay V-5000 Series aviation hose reels handle a single hose 2-1/2 or 3 in. I.D. hose for jet/AV gas fuel dispensing. Chain and sprocket drive powered by a 12 volt electric explosion proof motor provide effortless and fast rewinding.

  • Model: V-EPJ5319-62-64-30

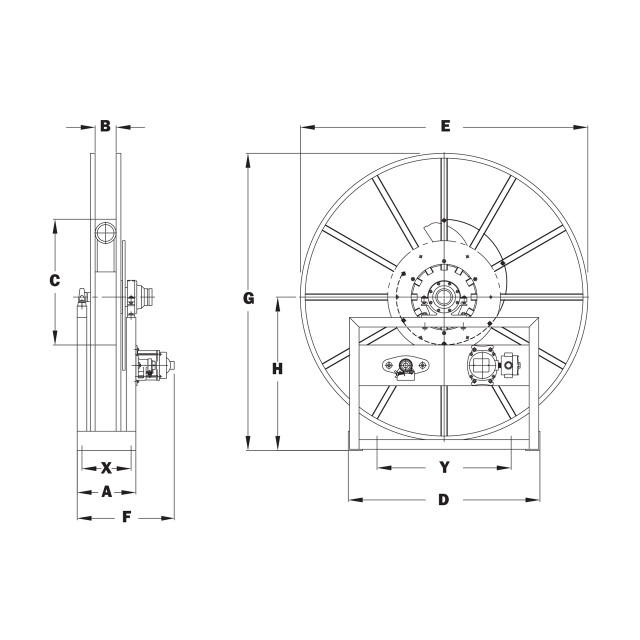

  • Dimensions: 20.5 in. L x 62 in. W (D) x 64 in. H
  • Reel Capacity:
    • 2-1/2 in. ID Hose = 50 ft.
    • 3 in. ID Hose = 50 ft.

Note: Be sure to check dimensions and weights (Dimensions tab). The weight listed for reels is approximately 75 lbs. more than the actual weight of the reel due to shipping materials.

  • Handles 2-1/2 in. or 3 in. I.D. hose
  • 2/3 HP 12 volt electric motor, comet brake, reduction unit standard
  • Explosion proof switch, solenoid and junction box
  • Effortless and fast rewinding, wrapping, and guiding of hose
  • Chain and sprocket drive powered by electric motor
  • Inlet and hub assembly are aluminum for jet fuel
  • Standard inlet: 90° ball bearing swivel joint, 1-1/2 in. female NPT threads, 2 in. Victaulic® groove, flanged riser with 1-1/2 in. female NPT threads
  • Standard pressure to 600 PSI (41 bar)
  • Standard fluid temperature from -25° F to +250° F (-32° C to +121° C)
