Hose Reels

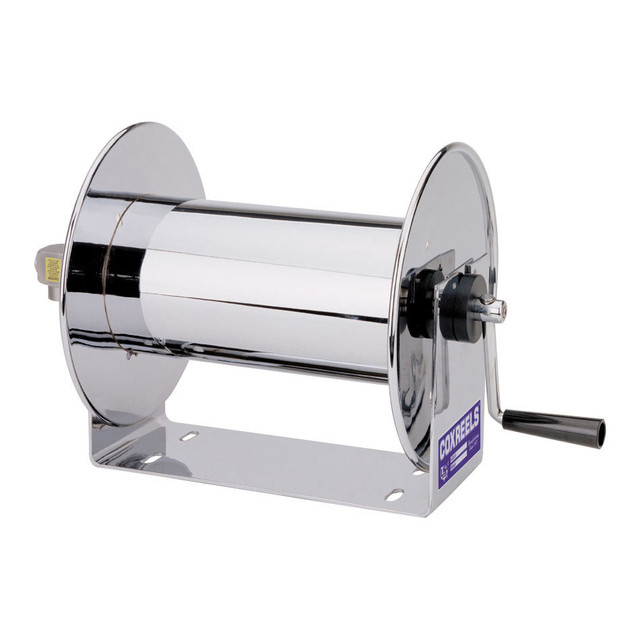

Coxreels 117-4-225-SS Stainless Steel Compact Hand Crank Hose Reel – Reel Only -1/2 in. x 225 ft.
$963.83
SKU: COX1174225SS
Manufacturer: Coxreels
Size Index: 5
Size: 1/2 in.
Hose Included: No
Capacity: 225 ft.
Rewind Type: Manual Rewind
Material: Stainless Steel
Peso: 31.00 LBS
Coxreels SS Series Stainless Steel hand crank hose reels have similar features to their related series, but are constructed of high quality electro-polished or unpolished as manufactured stainless steel with stainless steel fluid paths. They offer clean, non-corrosive performance in applications that require it, such as food and chemical processing, marinas, and anywhere that rust, corrosion, and contamination thrive.
Model #: 117-4-225-SS
- Reel only - hose not included
- Choice of stainless steel finish
- Direct hand crank rewind
- Professional grade compact and lightweight design
- Open drum design for no hassle hose wraps
- Solid one piece, heavy gauge steel "U" shaped frame
- Adjustable tension brake to prevent "free-wheeling" during operation, transport, and storage
- Non-corrosive external fluid path with machined from high quality stainless steel 90° full-flow NPT swivel inlet
- Swivel seals: Nitrile non-toxic food grade grease
- Professional grade heavy duty steel construction
- Durable proprietary CPC powder coat process
- Rolled edges and ribbed discs provide strength and safety
- Max pressure: 4000 PSI
- Leading 2-year manufacturers warranty
- Made in USA - sold and supported worldwide
- Corrosive Environments
- Hygienic Environments
- Fire Suppression
- Medical Services
- Marine, Docks, and Offshore
- Manufacturing Plants and Facilities
- Pulp and Paper Plants
- Food and Chemical Processing Plants
- Bottling Plants
- Diaries
- Meatpacking
- Grocery Stores
- Restaurants and Commercial Kitchens
- Water Treatment and Supply
- Petrochemical
- Food Grade Washdown
- Brand: Coxreels
- Model: 117-4-225-SS
- Rewind Type: Manual Rewind
- Size Index: 5
- I.D: 1/2 in.
- O.D: 7/8 in.
- Length: 225'
- Hose: No
- Max PSI: 4000
- Material: Stainless Steel
- Overall Dimensions W x H x L : 22 3/4 in. x 18 in. x 17 in.
- Mounting Pattern (M x N): 10 in. x 3 in.
- Base (X x Y): 14 in. x 6 in.
