Hose Reels
Hannay Reels V-1 1/2 in. Series Explosion Proof 12V Electric Rewind Aviation Reel, Reel Only, 1 1/2 in. x 100 ft., V-EPJ38-23-24
$2,170.52
SKU: HRVEPJ382324RT12V
Manufacturer: Hannay Reels
Size: 1 1/2 in.
Capacity: 100 ft.
Hose Included: No
Rewind Type: Motorized Rewind
Peso: 235.00 LBS
Hannay Reel’s V-1 1/2 in. Series Electric Rewind Aviation Hose Reel is designed to handle 1-1/4 in. or 1-1/2 in. I.D. Jet/AV gas fuel hose. Reel includes a 12 volt, 1/2 HP explosion proof motor.
- Model: V-EPJ38-23-24
- Dimensions: 43.88 in. L x 20.5 in. W (D) x 23.5 in. H
- Reel Capacity:
- 1 1/4 in. ID = 175 ft.
- 1 1/2 in. ID = 100 ft.

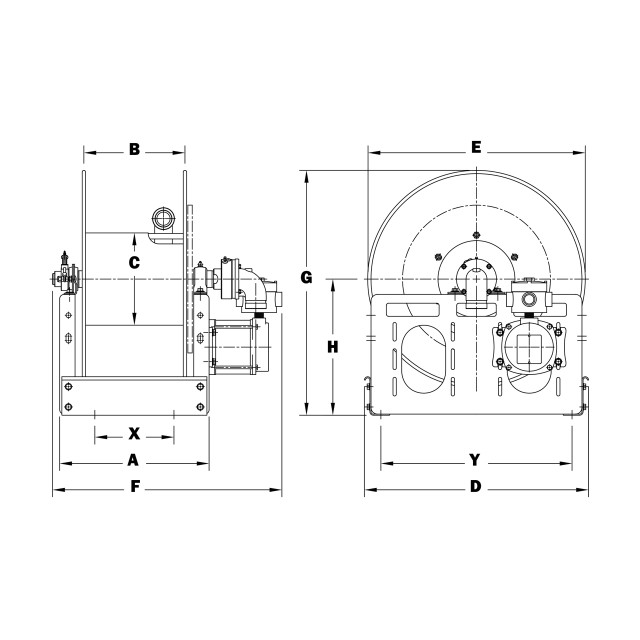

Note: Be sure to check dimensions and weights (Dimensions tab). The weight listed for reels is approximately 40 lbs. more than the actual weight of the reel due to shipping materials.
- Rugged industrial duty construction
- Explosion proof 12V electric rewind motor (1/2 HP) - Supplied with explosion proof switch, solenoid, and junction box
- For Jet/AV gas fuel dispensing
- Chain and sprocket drive powered by an electric motor
- Standard Inlet: 90° ball bearing swivel joint with 1-1/2 in. female NPT threads and 2 in. Victaulic® groove
- Standard Outlet: Flanged riser with 1-1/2 in. female NPT threads - Other sizes and/or threads can be furnished and must be specified
- Inlet, outlet riser, hub assembly are aluminum for jet fuels - Stainless steel fluid path is available at extra cost
- Standard pressures to 600 PSI (41 bar)
- Standard fluid temperatures from -20° F to +212 °F (-29° C to +100° C)
- Please call 1-855-449-0802 for additional accessories, sizes, pressures, and temperatures
