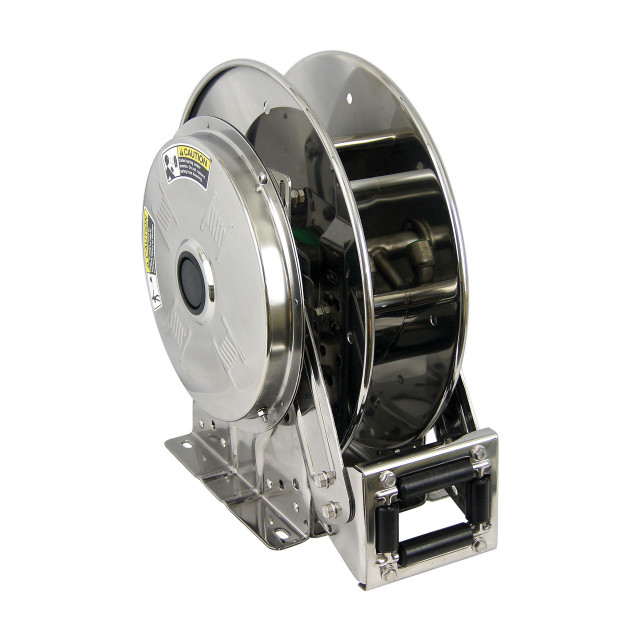

Hannay Reels SSN700 Series Stainless Steel Spring Rewind Reel, Reel Only, 1/2 in. x 65 ft., SSN716-23-24-15.5G
$1,631.40
SKU: HRSSN7162324155GSR
Manufacturer: Hannay Reels
Size: 1/2 in.
Capacity: 65 ft.
Product Type: Spring Rewind-Hose Not Included
Peso: 94.00 LBS
Hannay Reels SSN700 Series is constructed from stainless steel and is the ideal reel for sanitary applications or harsh environments. Commonly used in the food and beverage, dairy, pharmaceutical, and cosmetics industries due to the resistance to rust and corrosion and the absence of paint to chip. Handles 1/4 in. through 1/2 in. ID hose (sold separately).
- Model: SSN716-23-24-15.5G

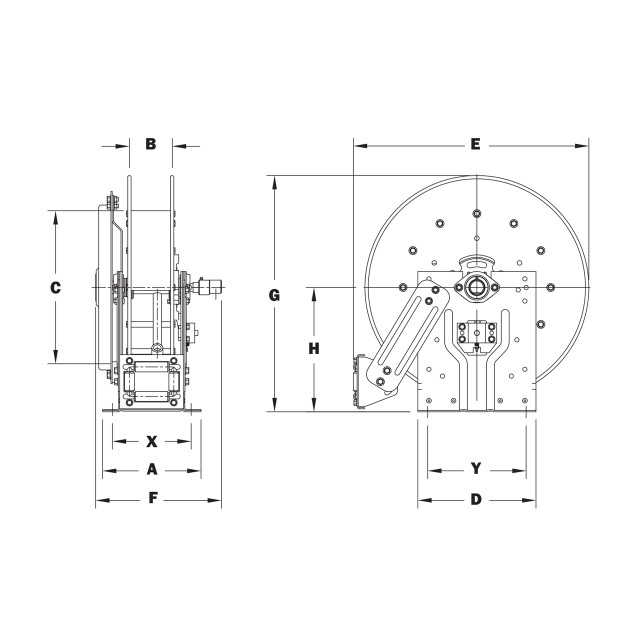

- Dimensions: 24 in. L x 12.88 in. W x 24 in. H
- Reel Capacity:
- 1/4 in. ID Hose = 100 ft.
- 3/8 in. ID Hose = 75 ft.
- 1/2 in. ID Hose = 65 ft.
- Standard SSN Series has a narrow frame and compact mounting base
- Non-sparking ratchet assembly
- Declutching arbor to prevent damage from reverse winding
- Standard inlet: 90° stainless steel ball bearing swivel joint, 1/2 in. female NPT threads
- Standard outlet: 1/2 in. female NPT threads
- Standard pressures to 3000 psi (207 bar)
- Fluid temperatures from +32° F to +400° F (0° C to +204° C)
- 4-way roller assembly
- Constant Tension is available - Please Call 1-855-783-5959 for more information
- Lubrication
- Potable Water
- Chemical Transfer
- Washdown
- Corrosive Environments
