Grounding Reels and Equipment

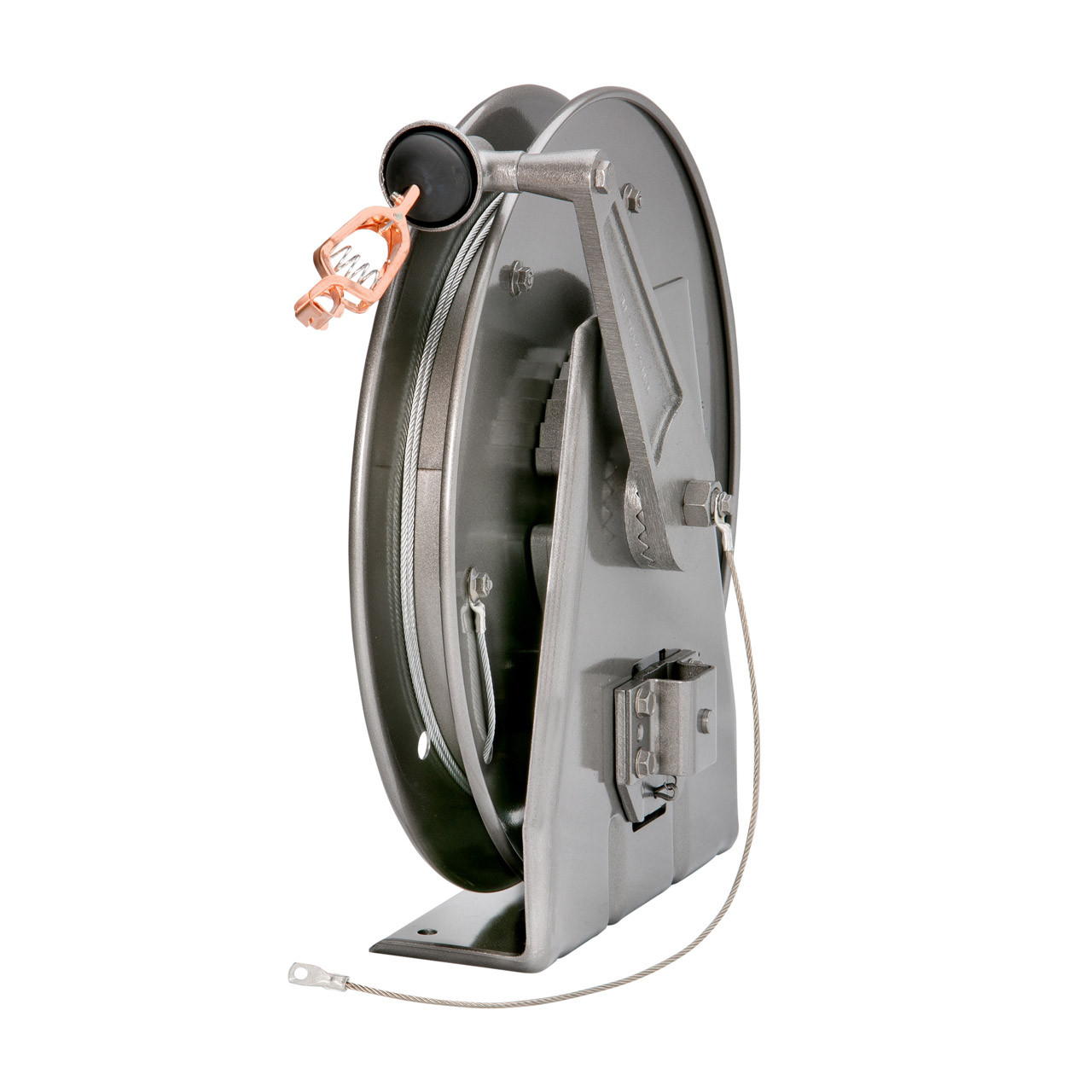

Hannay Reels HGR Series Heavy Duty Grounding Reel, Reel Only, 125 ft. Capacity, HGR-100
$403.16
SKU:HRHGR100
Manufacturer:Hannay Reels
Capacity:125 ft.
Material:Steel
Cable Included:No
Rewind Type:Spring Rewind
Peso:45.00 LBS
Hannay Reel’s static reels for grounding or refueling in hazardous areas. Used for aircraft refueling, chemical plants, grain elevators, rescue, and hazmat operations. Increases safety by providing bonding and/or grounding to prevent static electricity build-up in sensitive areas. These static grounding reels provide smooth operation and require minimum cable pull.
- Model: HGR-100
- Dimensions: 16.75 in. L x 5.5 in. W x 17.75 in. H
- Reel Capacity: 125 ft. of 3/16 Static Grounding Cable – Cable not included
- Provide smooth operation and require minimum cable pull
- Declutching arbor and adjustable guide arm with cable guide
- Standard finish is oven-cured enamel
- Available with 1/8 in., 7x19 galvanized carbon steel cable
- 100 amp alligator clamp
- Stainless steel or plastic-covered cable and "Y" branches available at additional charge
- Cable guide arm of cast aluminum and ZA12 alum zinc alloy
- HGR reels come with 18 in. grounding strap
|
||||||||||||||

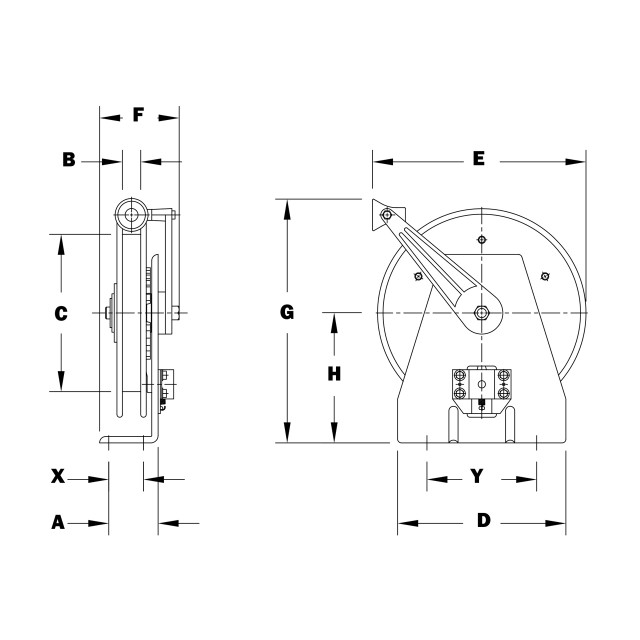

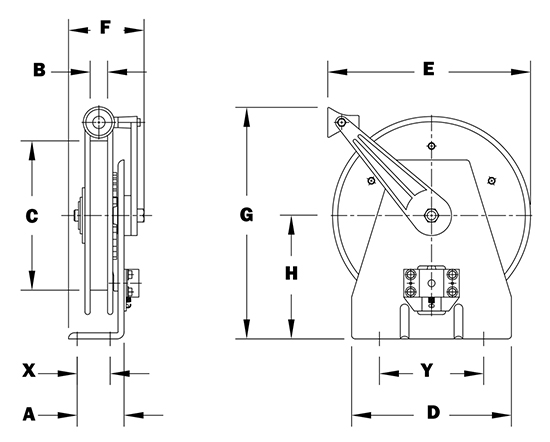

| MODEL | REEL CAPACITY (ft / lbs) | REEL DIMENSIONS (inches) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Length | Weight | A | B | C | D | E | F | G | H | X | Y | Relative Size | |
| HGR-50 | 3/16 Static Grounding Cable | 75 | 28 | 4 | 1.25 | 10.75 | 11.5 | 14.25 | 5.5 | 16.75 | 8.88 | 2.38 | 7.5 |  |
| HGR-100 | 3/16 Static Grounding Cable | 125 | 37 | 4 | 1.25 | 13.25 | 11.5 | 16.75 | 5.5 | 17.75 | 8.88 | 2.38 | 7.5 | |
