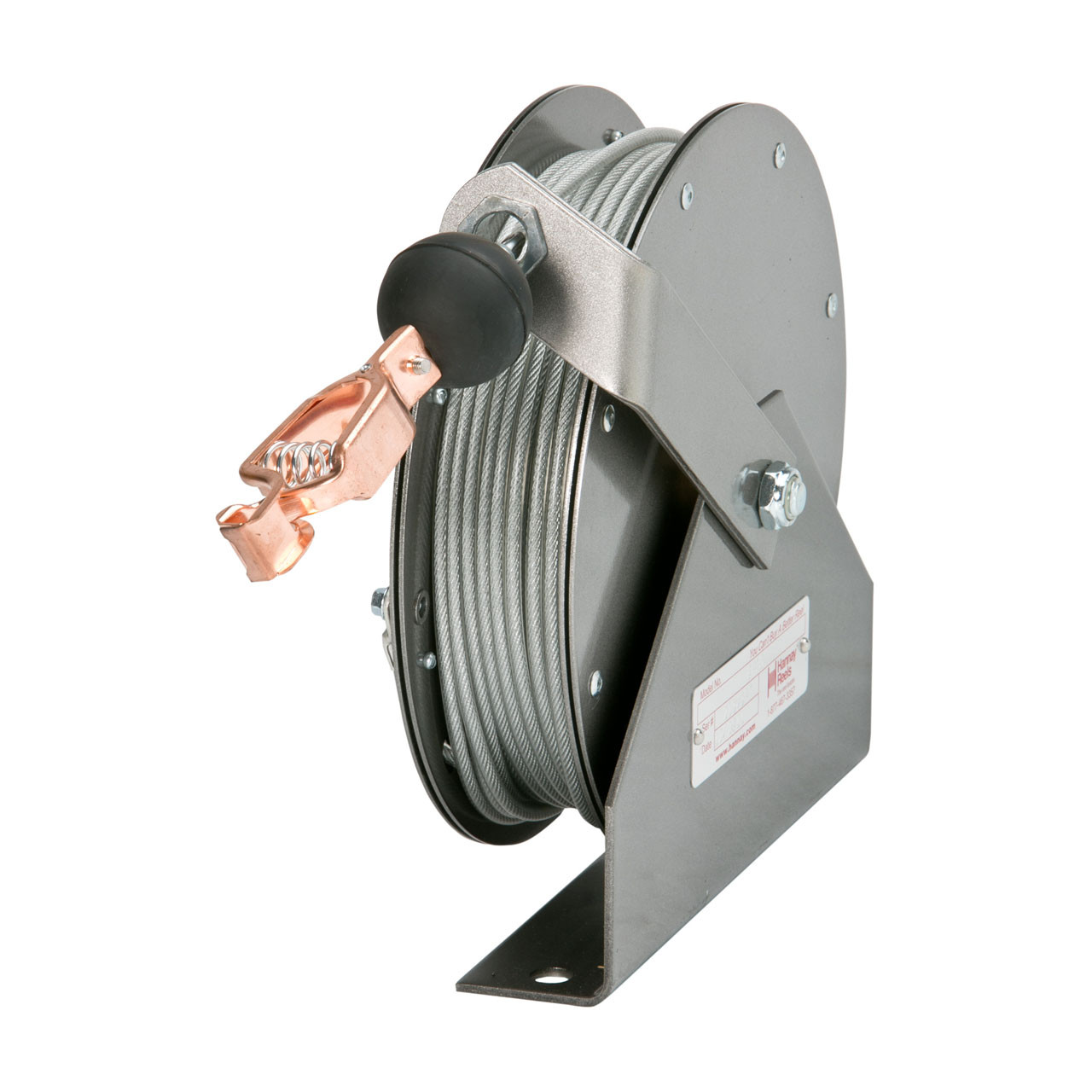

Hannay Reels GR Series Standard Duty Grounding Reel, Reel Only, 75 ft. Capacity, GR-75
$248.46
SKU:HRGR75
Manufacturer:Hannay Reels
Capacity:75 ft.
Material:Steel
Cable Included:No
Rewind Type:Spring Rewind
Peso:18.00 LBS
Hannay Reel’s static reels for grounding or refueling in hazardous areas. Used for aircraft refueling, chemical plants, grain elevators, rescue, and hazmat operations. Increases safety by providing bonding and/or grounding to prevent static electricity build-up in sensitive areas. These static grounding reels provide smooth operation and require minimum cable pull.
- Model: GR-75
- Dimensions: 9.25 in. L x 3.5 in. W x 9.88 in. H
- Reel Capacity: 75 ft. of 3/16 Static Grounding Cable – Cable not included
- Provide smooth operation and require minimum cable pull
- Declutching arbor and adjustable guide arm with cable guide
- Standard finish is oven-cured enamel
- Available with 1/8 in., 7x19 galvanized carbon steel cable
- 100 amp alligator clamp
- Stainless steel or plastic-covered cable and "Y" branches available at additional charge
|
||||||||||||||

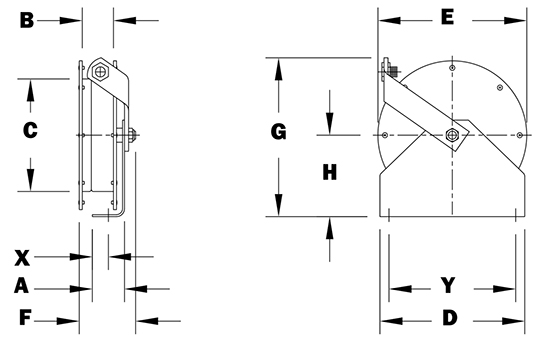

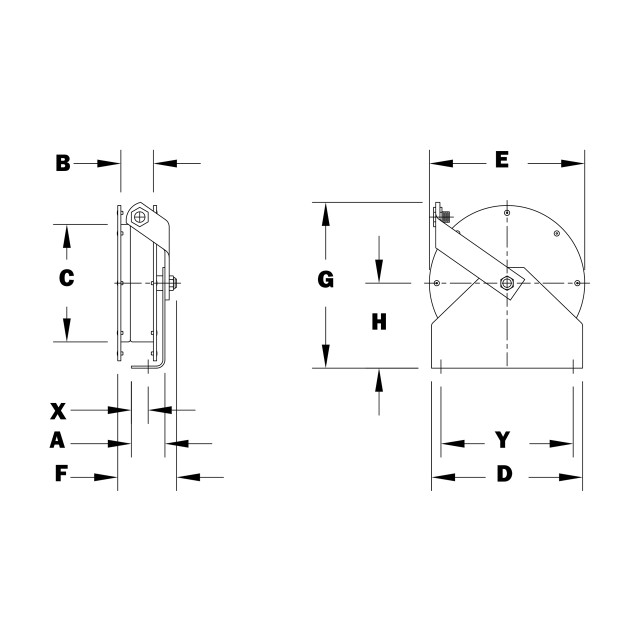

| MODEL | REEL CAPACITY (ft / lbs) | REEL DIMENSIONS (inches) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Length | Weight | A | B | C | D | E | F | G | H | X | Y | Relative Size | |
| GR-75 | 3/16 Static Grounding Cable | 75 | 11 | 2 | 2 | 7 | 9 | 9.25 | 3.5 | 9.88 | 5.06 | 1 | 7.88 |  |
