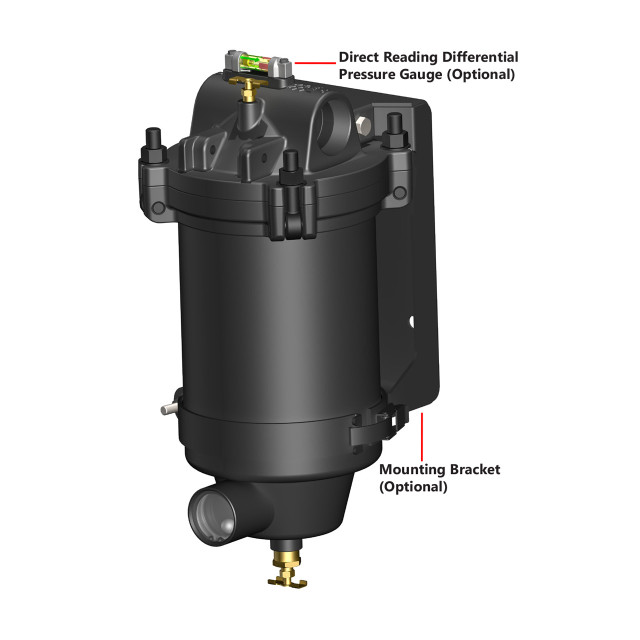

Facet VF-22SB Series Housing w/ Direct Reading Differential Pressure Gauge
$987.57
SKU: PFVF22SBPG
Manufacturer: Facet
Material: Carbon Steel
Size: 1 1/2 in. NPT
Peso: 16.00 LBS
- Carbon steel body
- Aluminum head
- Epoxy coated internally and externally
- Swing bolt quick open closure
- Nitrile rubber o-ring closure gasket
- Vent and drain connections w/ brass petcocks provided

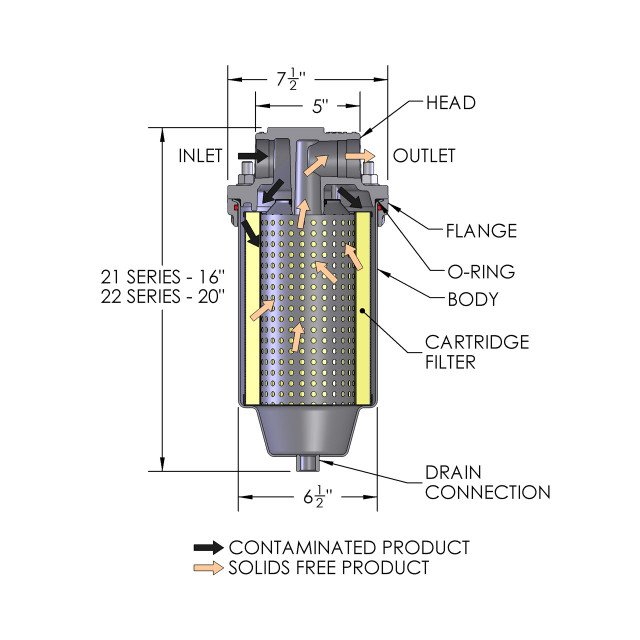

The Facet VF-21SB & VF-22SB are versatile, compact, economical, light weight housings for superior in-line filtration protection. These housings utilize the same elements as previous Series 21 & 22 housings, but offer the benefit of a quick open swing bolt type close along with a new optional mounting bracket for installation.
Depending on the type of cartridge selected, the housing may be used as a filter, absorptive filter, filter separator or air/gas entrainment separator to remove solids, water, mist or hydrocarbon carryover.
Note: Full flow monitors are not for use in fuel containing anti-icing additive (FSII, PRIST, DI-EGME). This includes pre-mixed and military fuels containing this additive.
- Design pressure: 150 psi (10.5 kg/cm2)
- Gasket: Nitrile rubber
- Inlet & Outlet connections: 1 1/2 in. NPT
- Jet Fuel
- Avgas
- Gasoline
- Diesel
- Bio-Diesel
- Lube Oil
- Insulating Oil
- Hydraulic Oil
- Transformer Oil
- Solvents
- Compressed Air
- LNG
