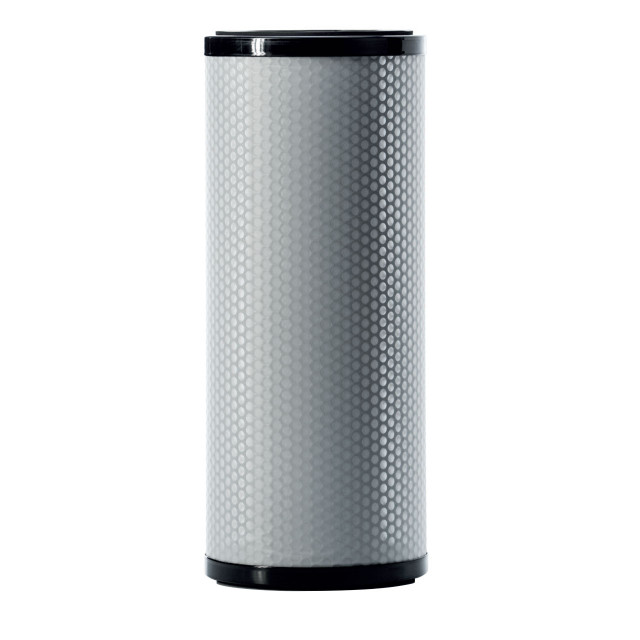

Facet SS Series 5 Synthetic Separator Cartridges – 3 1/2 in. ID
$469.13
- Cleanable and reusable
- Superior water barrier
- Treated metal components for corrosion protection
- Recommended maximum operating temperature: 240° F
- pH range from 5 to 9
- Designed for balanced flow through cartridge
- Flow direction: Outside to inside
Facet SS Series 5 synthetic separator cartridges feature a specially developed hydrophobic synthetic media which offers all the permanent features of Teflon coated metal screen, with the ability to handle higher flow rates. Synthetic mesh is wrapped around a treated, perforated metal shell, then adhesive-bonded to gasketed metal end caps. The distinctive Facet center tube design provides balanced flow of product (radially inward) throughout the cartridge. All metal components are treated to resist corrosion.
Facet filter water separators equipped with coalescer cartridges Facet CAA Series 5 and separator cartridges Facet SS Series 5 have been tested and fully qualified to meet the performance requirements of EI 1581, 6th Edition
The synthetic mesh is designed for more effective water repelling characteristics assuring long, trouble-free service. Recommended maximum operating temperature is 240°F (115°C). For compatibility in extreme operating conditions, other gasket, adhesive and metal materials are available.
- Series: SS-5
- Max. Operating Temperature: 240° F
- pH Range: 5 - 9
- Flow Direction: Outside to Inside
- Standard Gasket Material: Nitrile Rubber
- I.D. (Sealing End): 3 1/2 in. (89 mm)
- I.D. (Mounting End): 3 1/2 in. (89 mm)
