Facet Fuel-Gard VF-22SB Filter Cartridge – 2 Micron
$251.77
SKU: PFCF6122PLO
Manufacturer: Facet
Micron Rating: 2 Micron
Flow-Rate: 60 GPM
Product Type: Water and Particulate
Peso: 4.00 LBS
- Micron Size: 2
- Max Operating Temperature: 240°F (115°C)
- Max Differential Pressure: 75 PSI
- PH Range: 5 to 9
- Flow Direction: Outside to In
- Gasket: Nitrile Rubber
- Outside Diameter: 6 in. (152 mm)
- Nominal Length: 9 in. (230 mm)

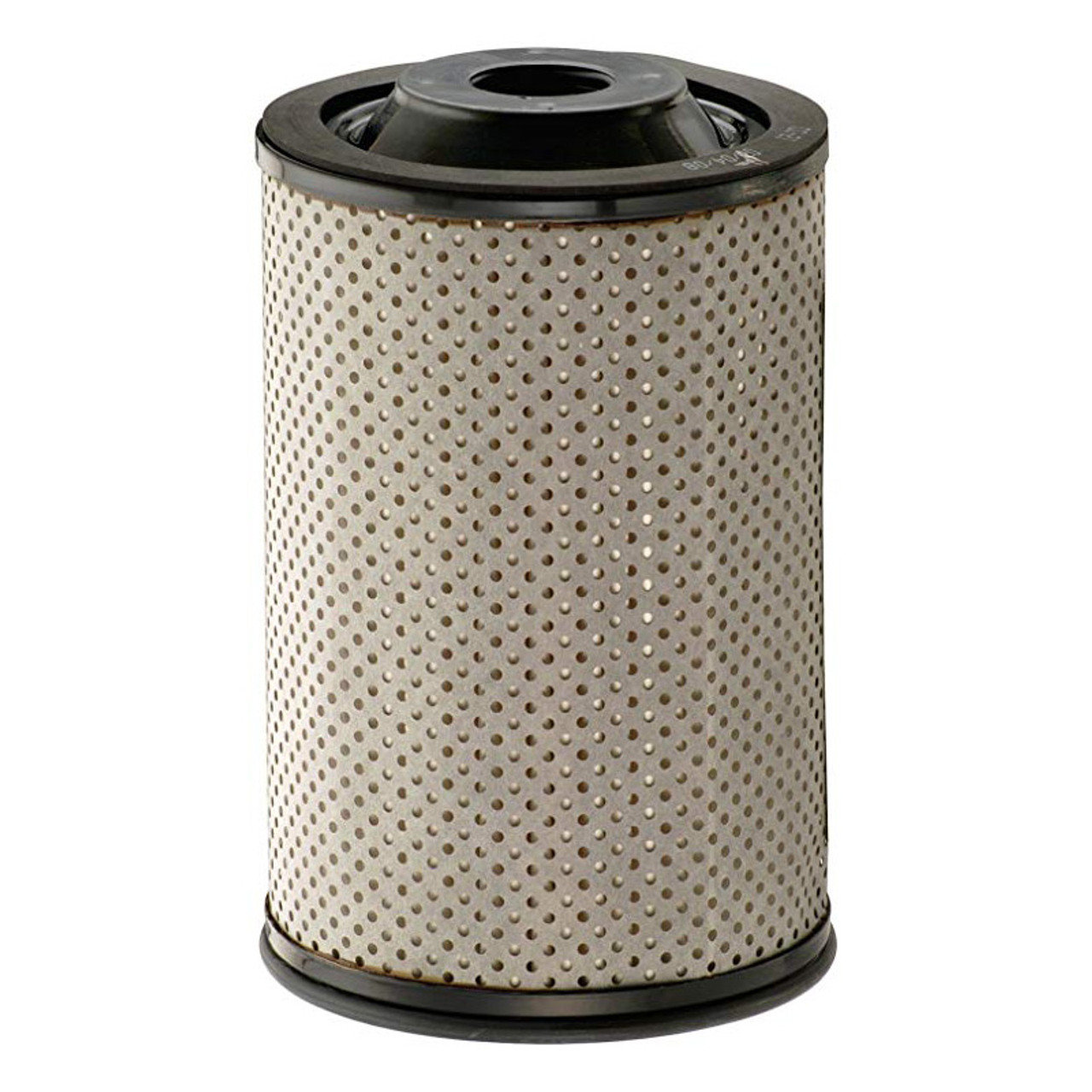

The Facet VF-22SB Series filter cartridges provide long service life and high solids holding capacity with no unloading characteristics. Carbon steel structural components are coated to protect against corrosion. Removes water and particulates from fuel.
VF-22SB Filter
| Part # | Micron Size | Flow Rate for Gasoline, Jet Fuel, Diesel |
| PFCF6122PLO | 2 | 60 GPM |
| PFCF6125PLO | 5 | 60 GPM |
| PFCF61210PLO | 10 | 60 GPM |
| PFCF61225PLO | 25 | 60 GPM |
VF-22SB Coalescer (Air/Gas) Separator
| Part # | Micron Size | Flow Rate Gasoline | Flow Rate Jet Fuel | Flow Rate Diesel | Flow Rate @ 25 PSI | Flow Rate @ 50 PSI | Flow Rate @ 75 PSI | Flow Rate @ 100 PSI | Flow Rate @ 150 PSI |
| PFCC227 | 1 | 60 GPM | 50 GPM | 30 GPM | 143scfm | 180 scfm | 203 scfm | 233 scfm | 270 scfm |
| PFCC22B | 5 | 60 GPM | 50 GPM | 30 GPM | 143scfm | 180 scfm | 203 scfm | 233 scfm | 270 scfm |
| PFCC22C | 25 | 60 GPM | 50 GPM | 30 GPM | 143scfm | 180 scfm | 203 scfm | 233 scfm | 270 scfm |
