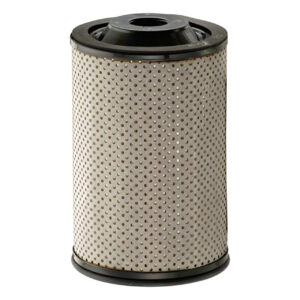

Facet FA Series Microfilter Cartridge w/ Screw Base – 3 Micron
$400.10
SKU: PFFA6443ASB
Manufacturer: Facet
Size: 44 in.
Material: Fiberglass and Cellulose
Micron Rating: 3 Micron
Pressure: 75 psi
Peso: 11.25 LBS
- Micron rating: 3
- Flow-rate: 176 GPM (666 LPM)
- Nominal Length: 44 in. (1118 mm)
- Outside Diameter: 6 in. (152 mm)
- Inside Diameter: 3 1/2 in. (89 mm)
- Removal Efficiency: Effluent solids < 0.15 mg/litre
- Structural Strength: 75 psi (5.17 bar)
- Filter media: Micro Fiberglass/Cellulose
- End caps: Steel powder coated
- Base: Screw Base
- Center tube: Spiral wound steel powder coated
- Gasket material: Nitrile rubber
- Adhesive: Plastisol
Facet FA Series microfilters offer superior filtration for removing ultra-fine solid contaminants such as rust, scale, granular and other types of solids from aviation fuel systems. They are designed to flow from the outside to the inside.
Facet SA Series microfilters are manufactured using proprietary combinations of Micro Fiberglass and Cellulose to achieve the desired removal rating.
- FA Series media provides high efficiencies, superior strength and durability
- One piece construction reduces downtime, cartridge change-out costs and eliminates filter bypass concerns
- 3 Micron Retention Rating
- All metal components are treated against corrosion. Spirally wound core reduces weight resulting in lower freight costs
