Dry Disconnect Couplings & Adapters

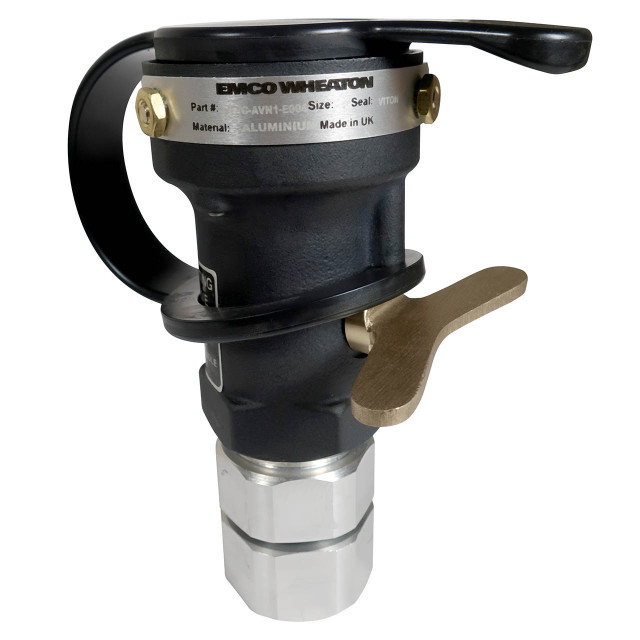

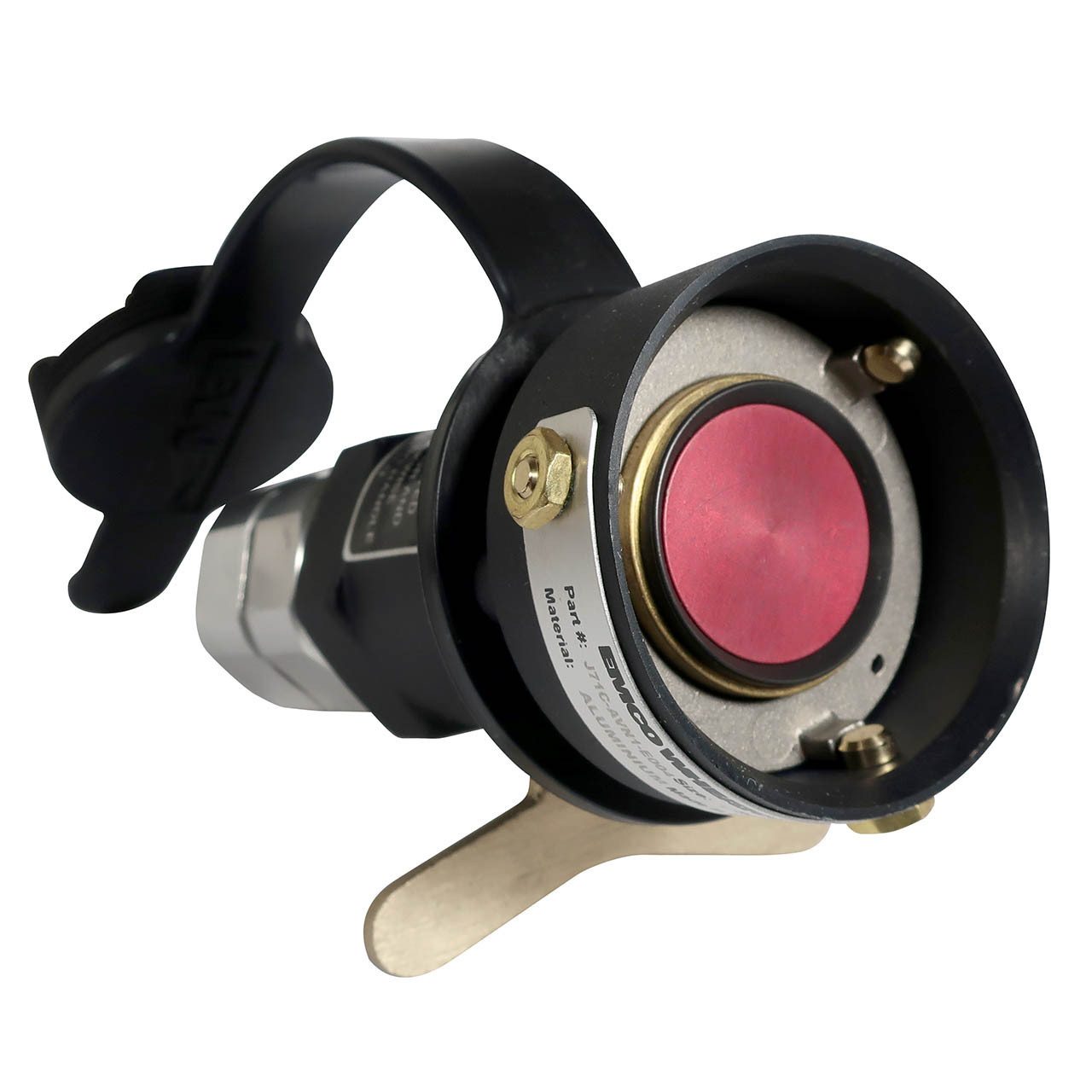

Emco Wheaton J71C-AVN0-E004 1 in. Female NPT Dry-Break Straight Coupler, FKM Seals
$585.09
SKU:EWJ71CAVN0E004
Manufacturer:Emco Wheaton
Size:1 in.
Material:Aluminum
Seal-Material:FKM
Product Type:Bayonet Style
Peso:2.50 LBS
Emco Wheaton J71C-AVN0-E004 1 in. Female NPT Dry-Break Straight Coupler, Viton Seals
Emco Wheaton DRY-BREAK™ couplers are designed for total safety. Fluid cannot flow until the Emco Wheaton coupler has been locked into position on an Emco Wheaton Adapter and the valve opened. The coupler can only be disconnected from the adapter when the valve has been closed. Since product loss is thereby eliminated, possible hazards associated with leakage at disconnect are no longer a concern.
- Cannot be opened until connected to adapter or disconnected until lever is moved to closed position thus eliminating accidental spillage
- Product loss on disconnect virtually eliminated
- Available with straight or 90° integrated ball-bearing swivel for loading arm or kink-free hose connection
- Interchangeable with all existing Emco Wheaton adapters
- Size: 1 in.
- Material: Aluminum
- Seal Material: Viton
- Dust Cap Included: Yes
- Temperature Range: 5°F to 225°F(-15°C to 107°C)
- Working Pressure: 85 PSI
- Type: Bayonet Style
