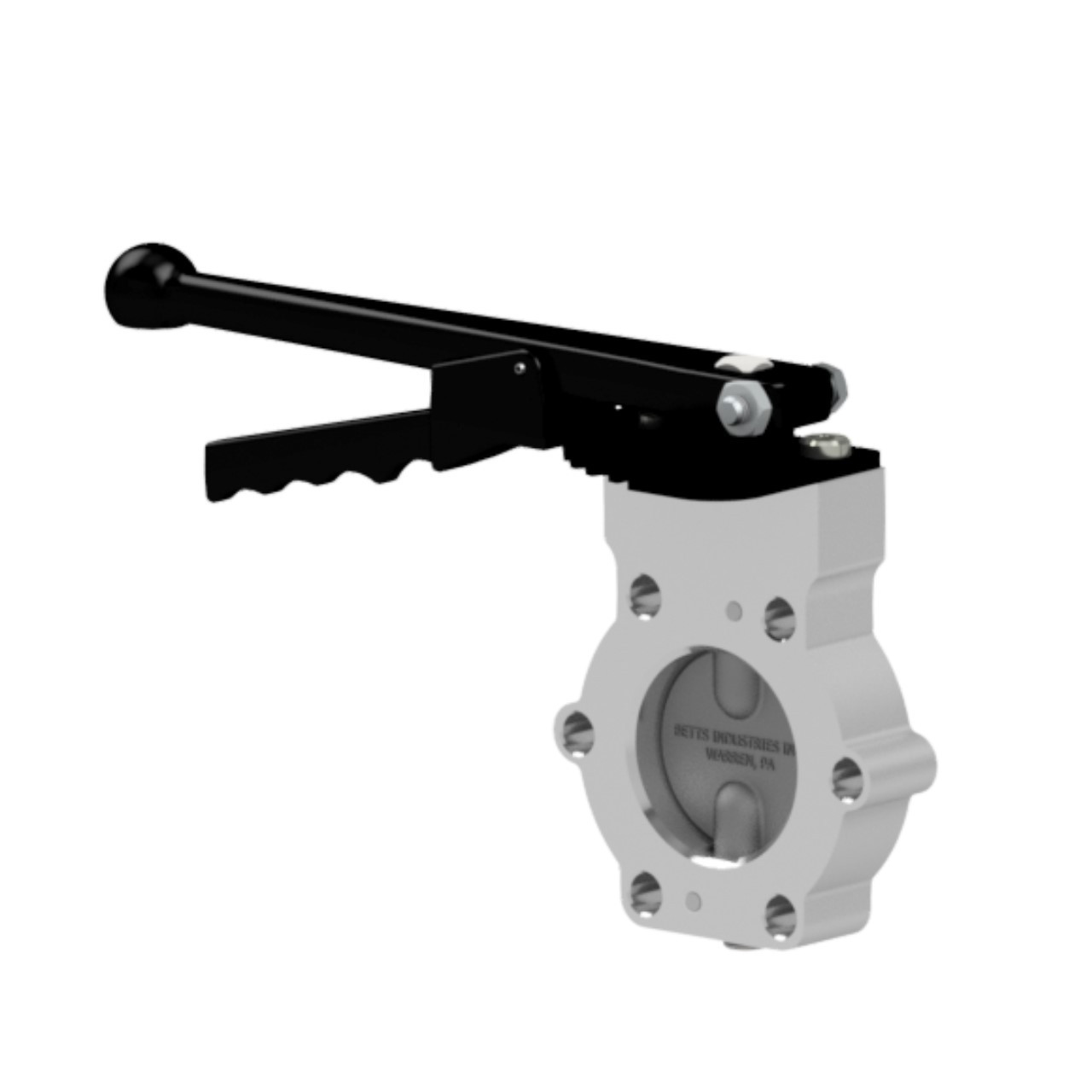

Betts WD Series 2 in. Aluminum Manually Operated TTMA Metering/Locking Wet-R-Dri Butterfly Valve – Black Nitrile Seal
$134.93
SKU:BTWD206ALB
Manufacturer:Betts
Size:2 in.
Material:Aluminum
Seal-Material:Nitrile Rubber
Product Type:Manually Operated
Peso:2.70 LBS
Betts WD Series 2 in. Aluminum Manually Operated TTMA Metering/Locking Wet-R-Dri Butterfly Valve – Black Nitrile Seal
The Betts Wet-R-Dri Valve is a lightweight and compact quarter turn in-line stop valve, designed for efficiency and versatility. Suitable for handling liquid, gaseous, or dry products, this valve is an ideal choice for various applications. It features a manual metering/locking mechanism with an eight-position handle, allowing precise control over the valve’s disc position. The disc seal and shaft O-rings come in multiple materials, optimizing the valve for different chemical environments and temperature ranges. It adheres to the TTMA piping flange dimensions for easy integration.
- Lightweight and Compact: Easy to handle and install, saving space and reducing weight in the system
- Eight-Position Locking Handle: Allows precise control and holds the disc in the desired position
- Versatile Applications: Suitable for liquid, gaseous, or dry products
- Customizable Seals: Disc seal and shaft O-rings available in various materials to meet specific chemical and temperature requirements
- Standardized Bolt Pattern: Matches TTMA piping flange dimensions for straightforward installation
- Size: 2 in.
- Body Material: Aluminum
- Maximum Working Pressure: 75 psi (5.17 bar)
- Seal Materials: Black Nitrile
- Temperature Range: -40°F to +240°F (-40°C to +116°C)
